Endpoints in OpenConnector

Endpoints in OpenConnector allow you to retrieve data from a source, such as an API or an OpenRegister instance. You can apply mappings and rules to process and manipulate the retrieved data as needed.

Creating an Endpoint​

An endpoint requires three key attributes:

  • endpoint – The API path (e.g., api/v1/zaken).
  • targetType – Defines the type of data source (api or register/schema).
  • targetId – The specific source identifier (e.g., registerId/schemaId).

Path Formatting Guidelines​

  • The endpoint must not start with /, but should begin with the first path segment as text (e.g., api/v1/zaken).
  • If your endpoint needs to support fetching a single item, append {{id}} at the end:
    api/v1/zaken/{{id}}
  • Each HTTP method (GET, POST, etc.) requires a separate endpoint definition. While the path remains the same, you must create individual entries for each method and clearly label them.

Using OpenRegister as a Data Source​

If the endpoint retrieves data from OpenRegister, set:

  • targetType to register/schema
  • targetId to the corresponding registerId/schemaId.

Example: ZGW Zaken Endpoint​

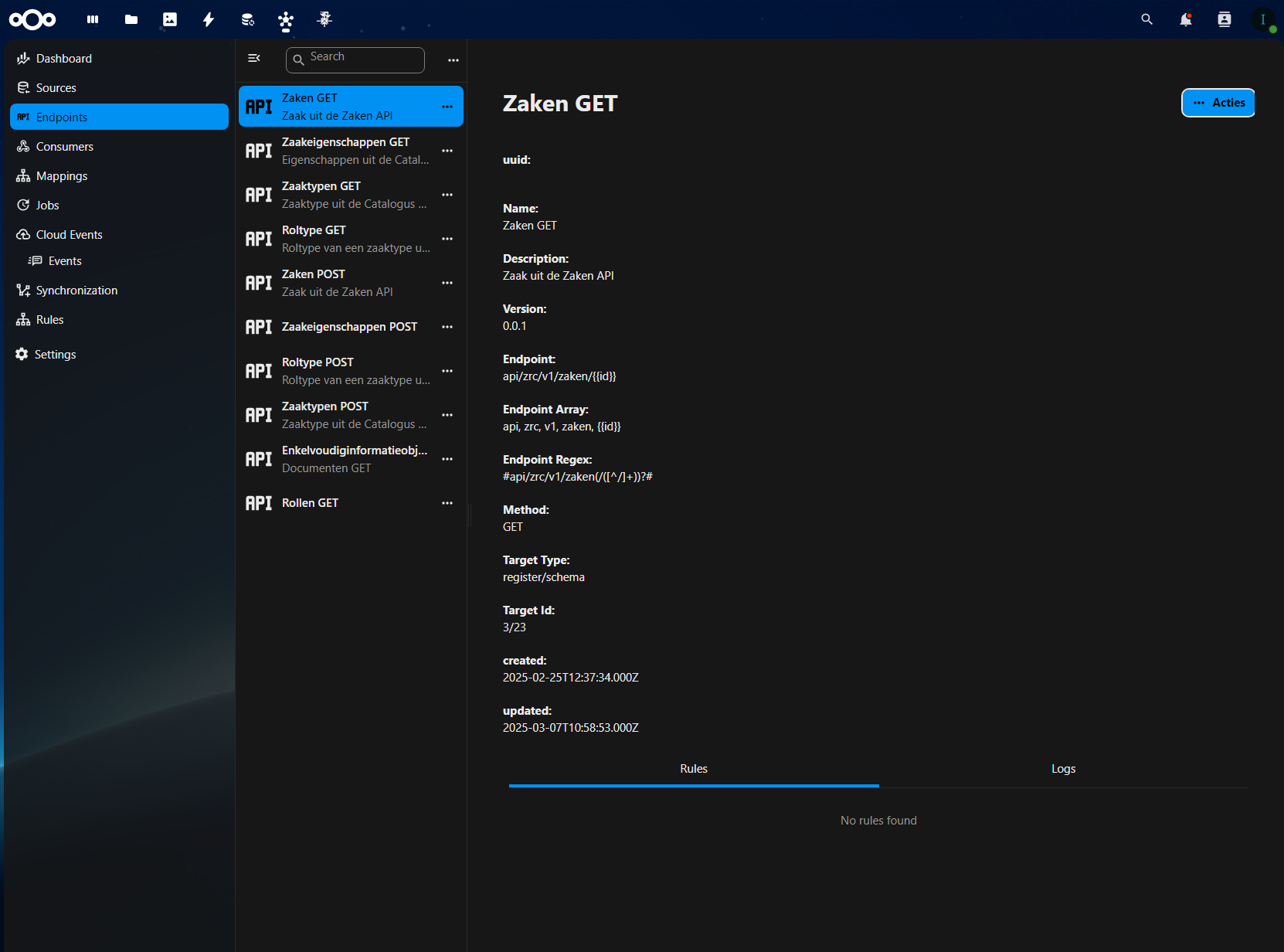

Endpoint example

Sub Endpoints​

For nested API paths, such as:

v1/zaken/{zaak_uuid}/zaakeigenschappen/{eigenschap_uuid}

The corresponding endpoint should be defined using placeholders:

v1/zaken/{{id}}/zaakeigenschappen/{{zaakeigenschap_id}}

Here, zaakeigenschap refers to the configured schema name in OpenRegister (converted to lowercase with _id appended).

Authorization​

Endpoints can either be publicly accessible or secured via JWT authentication.

Public Access​

By default, endpoints are publicly accessible unless authentication is explicitly enabled.

JWT Authentication​

To enable JWT-based authentication, follow these steps:

  1. Create a consumer in OpenConnector.
  2. Use the consumer name as clientId.
  3. Set the public key as the secret in the authorization configuration.
  4. Specify the admin username as the userId in the authorization settings.

Example: Consumer Configuration​

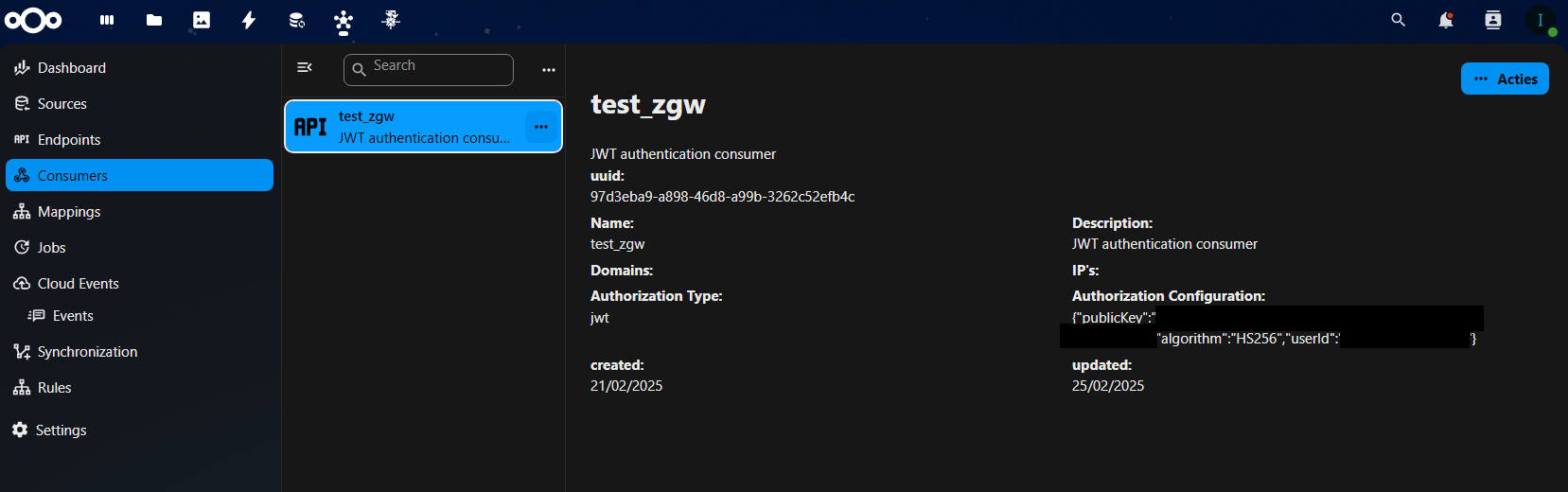

Example consumer

⚠️ Note: Authentication settings are automatically applied to all created endpoints and cannot be adjusted per endpoint at this time.

JWT Authorization in Postman​

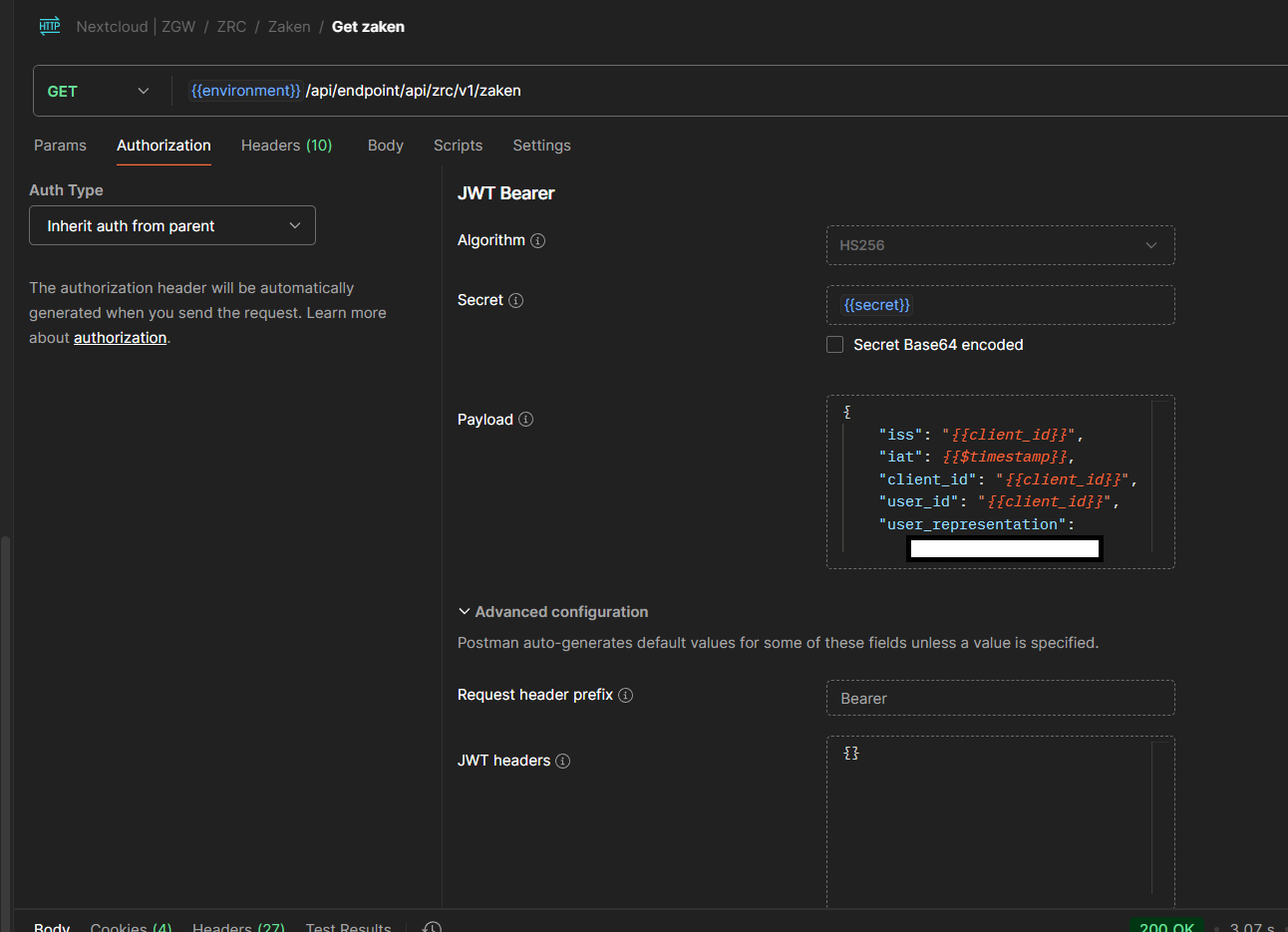

Postman example

Conclusion​

Endpoints in OpenConnector provide flexible API integration, allowing data retrieval from various sources. With mapping, rules, and JWT authentication, you can structure and secure API access as needed. 🚀
