Expose an endpoint

An Endpoint publishes data over HTTP. OpenConnector lets you serve OpenRegister objects, source proxies, or completely synthetic responses on a path you control, with the auth, headers, and rules you configure.

Goal​

By the end you will have published one read endpoint, called it from outside Nextcloud, and seen the request and response captured in the Endpoint Logs.

Prerequisites​

  • You have completed Run a synchronization (or have at least one register/schema in OpenRegister populated with data).
  • You know what path your downstream consumer expects (e.g. /api/zaken).
  • You know what authentication you want the endpoint to enforce — none, an API key, or OAuth.

Steps​

  1. From the navigation, click Endpoints and then Add Endpoint.

    Endpoints list with Add Endpoint

  2. Fill in the path, method, and the Target section: pick register/schema to publish OpenRegister data directly, or proxy to forward to a Source. Save.

    Add Endpoint dialog

  3. On the endpoint detail page, attach an optional Request mapping (reshape the incoming body before it's used) and a Response mapping (reshape the outgoing body). Both are optional — leave empty to pass data through unchanged.

    Endpoint mapping attachments

  4. Open the Test action: enter a query (e.g. ?_limit=5), run it, and review the response. The same call is recorded in the Endpoint Logs for later audit.

    Endpoint test call

  5. From the Logs sub-entry under Endpoints, click any log row to inspect the full request and response — headers, body, status, timing.

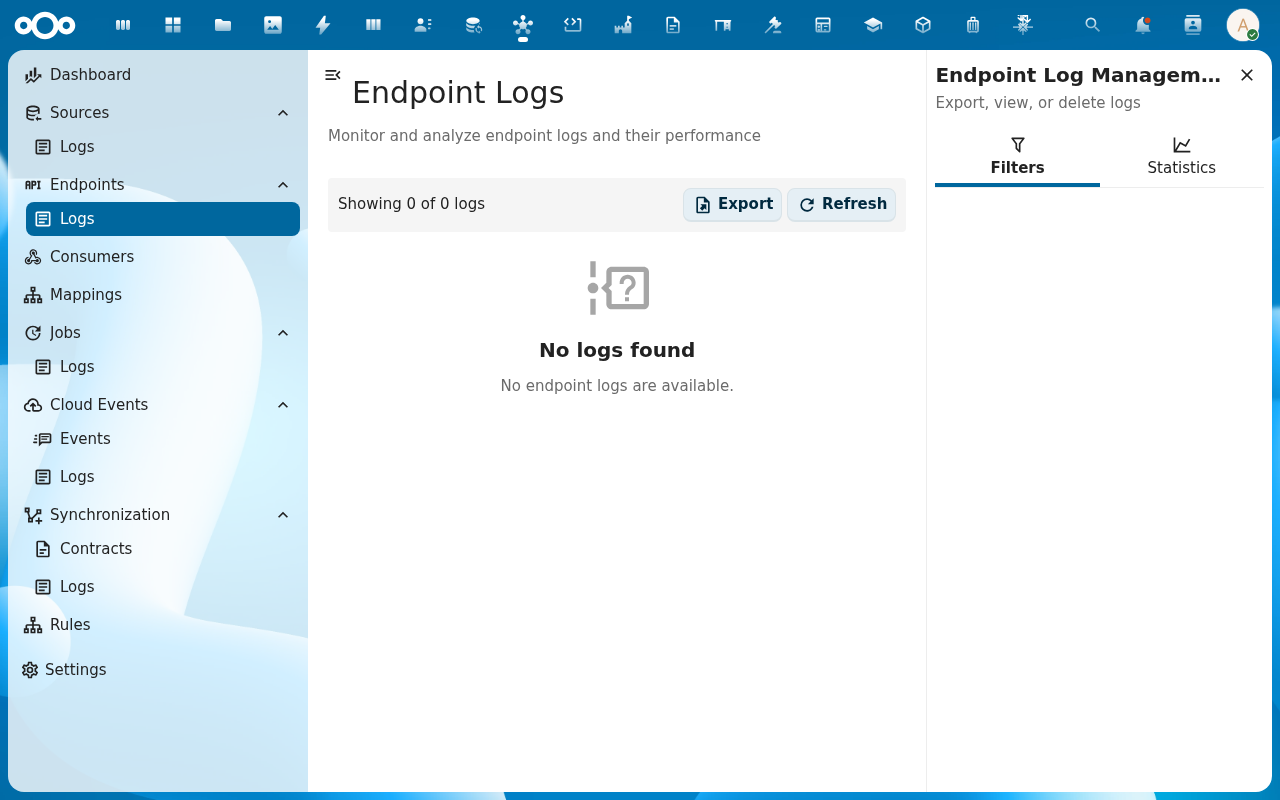

    Endpoint logs

Verification​

You are done when: a call to the endpoint URL returns the expected status code, the response body matches what the configured target / mappings produce, and the call appears in Endpoint Logs with matching status and timing.

Common issues​

SymptomFix
External call returns 404 Not FoundThe endpoint path collides with another OpenConnector or Nextcloud route — try a deeper path (e.g. /api/v1/zaken instead of /zaken).
External call returns 403 even with a valid tokenThe endpoint rules reject the caller — open the endpoint's Rules tab and check which rule fired.
Response body is wrapped in OpenRegister metadata you don't wantAttach a Response mapping that picks only the public fields, or use the endpoint's response shape options to flatten the envelope.

Reference​

  • Endpoints feature — full reference for the endpoint engine.
  • Rules feature — how to enforce auth, rate limits and shaping rules at the endpoint level.
